Oil tempered spring steel wire for big size

Item Code: Features:1. Material: SAE6150; SAE9255; SAE9254V; SAE1566; SAE1065 and so on. 2. Size: Diameter：6mm--20mm. 3. Usage: spring, machinery manufacturing, etc.

Description

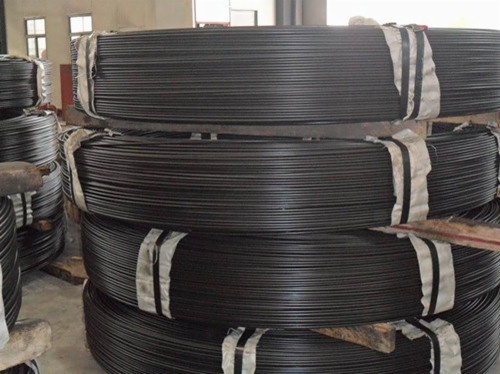

Commodity: Oil tempered spring steel wire for big size

1. Material JIS: SUP6; SUP7; SUP9; SUP9A; SUP10; SUP12; SUP12V; S60C.
                    SAE: SAE9254; SAE9260; SAE6150; SAE9255; SAE9254V; SAE1566; SAE1065; SAE52100.
                    DIN: 55Cr3; 60Si7; CK67; 60SiCr7; 50CrV4; 100Cr6.

2. Usage Automobile suspension spring frame; clutch spring; motorcycle damping spring;
cylinder valve spring; automobile plate spring; sofa mattress; etc.

3. Size Diameter: 6mm--20mm

4. Material chemical composition

Steel grade	C	Mn	S	P	Si	Cr	Cu
SUP9	0.52～0.60	0.65～0.95	≤ 0.030	≤ 0.030	0.17～0.37	0.65～0.95	≤0.25
SAE9254	0.51～0.59	0.60～0.90	≤0.040	≤ 0.035	1.20～1.60	0.60～0.80
SAE6150	0.48～0.53	0.70～0.90	≤ 0.035	≤ 0.040	0.15～0.35	0.80～1.10
55CrSi	0.50～0.60	0.50～0.80	≤ 0.030	≤ 0.030	1.20～1.60	0.50～0.80	≤ 0.02
60Si2Mn	0.56～0.64	0.60～0.90	≤ 0.035	≤ 0.035	1.60～2.00	≤ 0.035	≤0.25
CK67	0.63～0.68	0.50～0.80	≤ 0.035	≤ 0.035	0.10～0.30	≤0.150	≤0.25
100Cr6	0.95～1.05	0.25～0.45	≤0.025	≤0.025	0.15～0.35	1.40～1.65	≤0.25
SUP10	0.47～0.55	0.65～0.95	≤ 0.030	≤ 0.030	0.15～0.35	0.80～1.10	≤0.25

5. Tensile strength

Diameter Range(mm)	Tensile Strength	MPA				Reduction	of Area
	FDC TDC	FDCrV-A TDCrV-A	FDCrV-B TDCrV-B	FDSiMn TDSiMn	FDCrSi TDCrSi	FD	TD
>6.00-6.50	1440-1590	1420-1570	1510-1660	1640-1790	1760-1910	35	40
>6.50-7.00	1430-1580	1400-1550	1500-1650	1630-1780	1740-1890	35	40
>7.00-8.00	1400-1550	1380-1530	1480-1630	1620-1770	1710-1860	35	40
>8.00-9.00	1380-1530	1370-1520	1470-1620	1610-1760	1700-1850	30	35
>9.00-10.00	1360-1510	1350-1500	1450-1600	1600-1750	1660-1810	30	35
>10.00-12.00	1320-1470	1320-1470	1430-1580	1580-1730	1660-1810	30	----
>12.00-14.00	1280-1430	1300-1450	1420-1570	1560-1710	1620-1770	30	----
>14.00-15.00	1270-1420	1290-1440	1410-1560	1550-1700	1620-1770	-----	----
>15.00-17.00	1250-1400	1270-1420	1400-1550	1540-1690	1580-1730	-----	----

Note: When dia≤5.00mm for FDSiMn, the Reduction of Area should be above 35%; When dia between 5.00and 14.00, the Reduction of Area should be above 30%.
